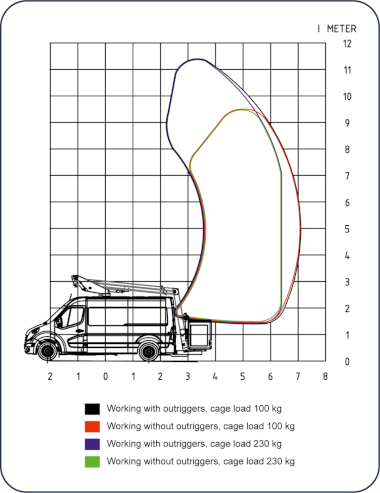

| Max. working height (m) | 11.50 m |
| Max. outreach (m) | 7.20 m |
| Type of car | Van, Chassis, Pickup |
| Product details | |
| Cage load capacity | 230 kg |
As the name suggests, the Light Series is designed for smaller and lighter vehicles of a maximum of 3.5 tonnes. The platforms in this series are also lighter in construction but still extremely stable due to the high-strength steel main components and the angles of the boom profile. The Light Series has all the necessary functions, the most essential sensors and a max. cage capacity of 230 kg. The Light Series is perfectly suited for work in places where space is tight, such as in cities, where you need to be able to get around without difficulty and without disturbing traffic.

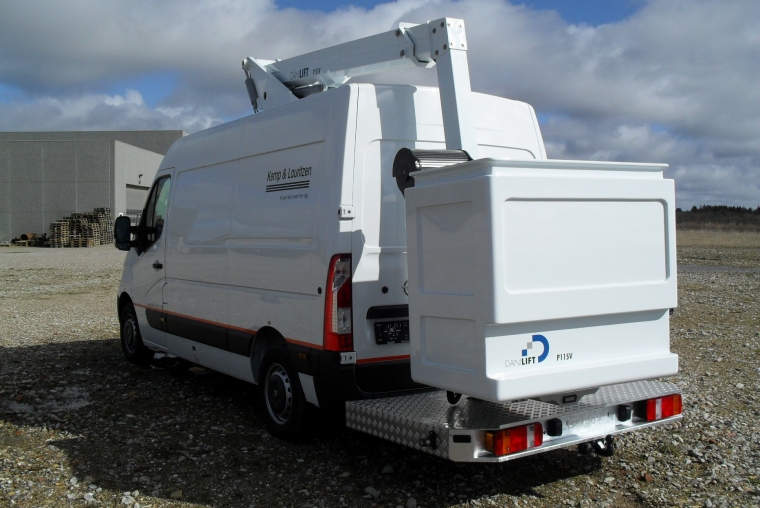

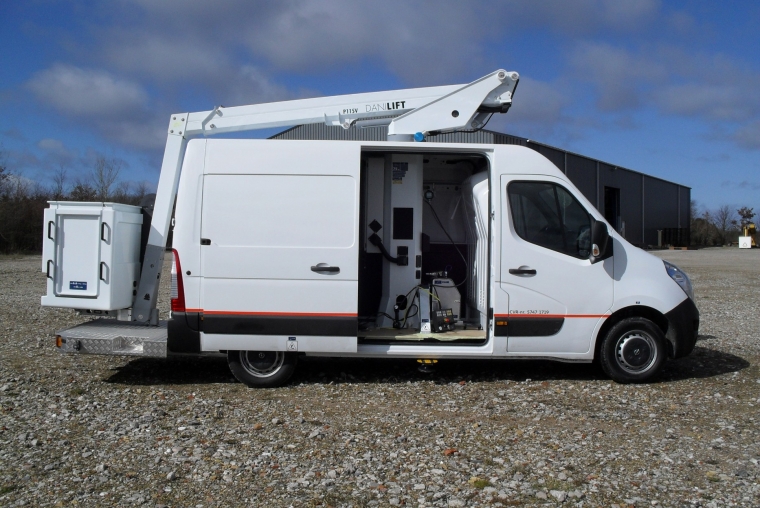

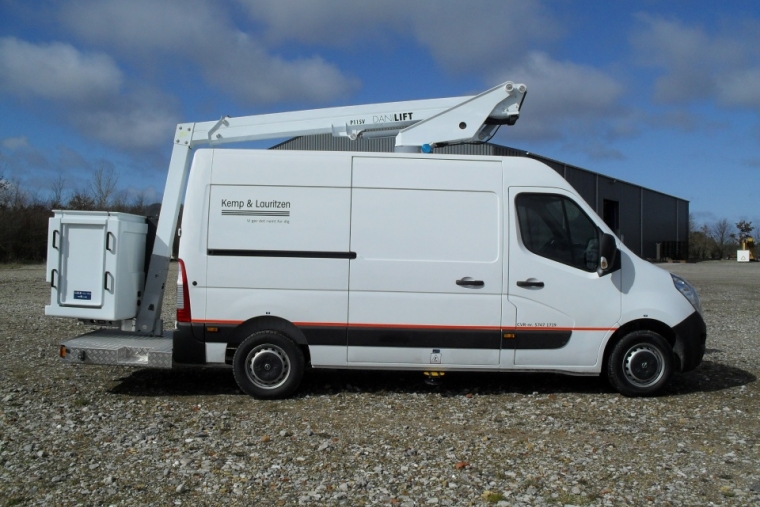

The P115V is suitable for mounting on smaller chassis, pickups and small vans. Can be mounted on vehicles with a total weight from 3.5 tonnes.

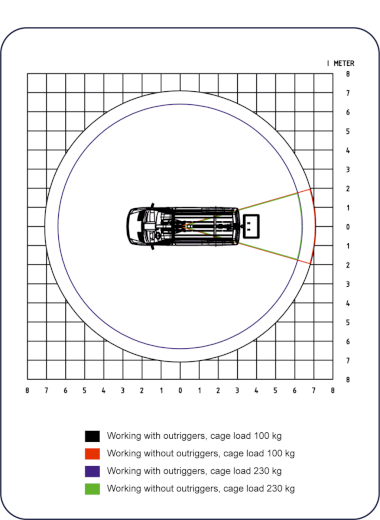

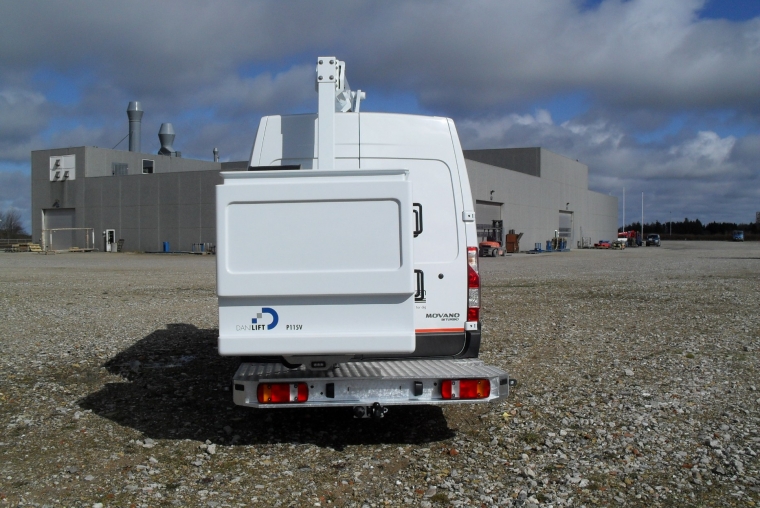

The cage boom of the P115V is not movable, allowing direct access to the basket from the underrun protection. The inner and outer booms are made of high-strength steel. The cage boom is made of aluminum and adapted to the height of the structure. The P115V regulates its horizontal outreach depending on the load in the cage - from 100 kg to 230 kg.
Exact specifications vary based on the individual build and chosen options.
* The selection of available options depends on the vehicle.
