Specifications

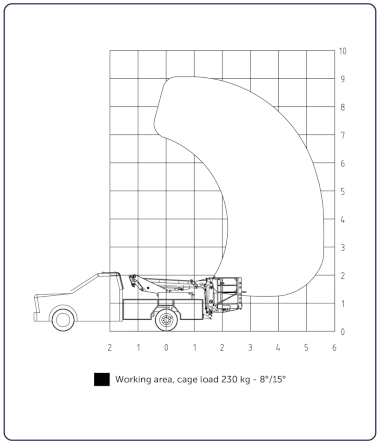

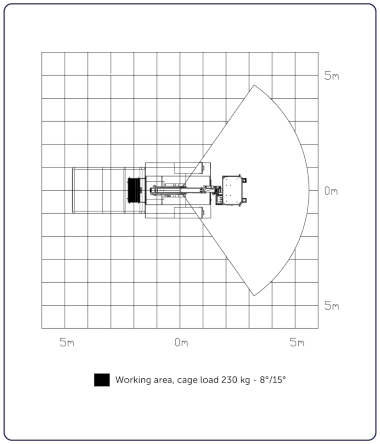

Max. working height (m) 9.00 m
Max. outreach (m) 5.80 m
Type of car Van, Chassis, Pickup
Class 2 license (over 3.5 tons)
Product details
Cage load capacity 230 kg
Standard equipment
Length and angle sensor
Rotation sensor
Load cell cage
110° movable cage boom
Operating without outriggers
Electronic cabin protection
Home function
Options
Isolation
1000V
Programmable settings
4 wheel brake

P110V - Exceptional access platform for working underground

The P110V is a custom-built access platform designed for underground work in rough mine terrain. The platform itself is based on our Light Series and it is mounted on a Dodge RAM.

The unit has no outriggers, but is instead equipped with a tilting unit, which ensures the stability of the platform. The unit can easily park on slopes of up to 12° and the platform can be leveled with the simple use of a joystick and a spirit level. With a total weight of 8250 kg and no outriggers, the driver is ensured easy mobility with the car and platform.

The storage modules are made of plywood with aluminium and galvanized parts to ensure long durability, and all exposed parts (lights, reflectors, control panel, etc.) are protected by steel frames.

Exact specifications vary based on the individual build and chosen options.

Standard features include:
  • 110 degree movable cage boom
  • Home function
  • 4 wheel brake
  • Electronic cabin protection
  • Protective disc that prevents stones from blocking the tyres
  •
